Utils.Display

Fill in a module description here

from nbdev.showdoc import *
from nbdev.showdoc import *
from fastcore.test import *
import inspect

def _fig_bounds(x):
    r = x//32
    return min(5, max(1,r))

from fastcore.utils import *
import cv2
import numpy as np
from imutils import resize
from PIL import Image
import matplotlib
import matplotlib.pyplot as plt
import moviepy.editor as mvp
from moviepy.video.io.ffmpeg_writer import FFMPEG_VideoWriter
import logging
import UAV.params as params
from UAV.utils.display import *

GStreamer is not installed

---

show_image

 show_image (im, ax=None, figsize=None, title=None, text=None,
             fontsize=12, ctx=None, rgb2bgr:bool=False, **kwargs)

Show a PIL or PyTorch image on ax.

	Type	Default	Details
im
ax	NoneType	None	if None, a new figure is created
figsize	NoneType	None	if None, the figure size is set to min of 5 and max of 1/32 of the image size
title	NoneType	None	title of the image
text	NoneType	None	text to be written on image
fontsize	int	12	fontsize of text
ctx	NoneType	None	context
rgb2bgr	bool	False	convert from/to RGB
kwargs
Returns	plt.Axes		return matplotlib axis

im2 = np.array(Image.open(TEST_IMAGE))

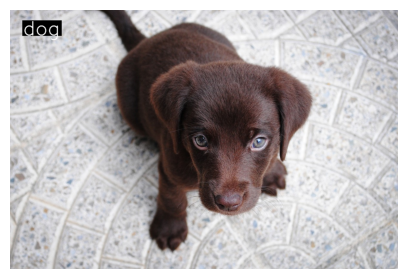

ax = show_image(im2, text='dog', figsize=(3,3))

ax = show_image(im2, text='dog', figsize=(3,3), rgb2bgr=True)

im2 = np.array(Image.open(TEST_IMAGE))
im2 = puttext(im2, 'dog')
ax = show_image(im2)

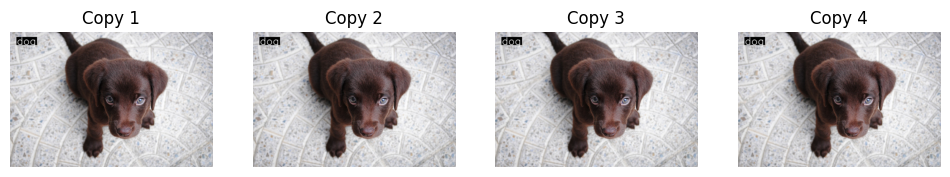

_,axs = plt.subplots(1,4,figsize=(12,4))
for i,ax in enumerate(axs): show_image(im2, ax=ax, title=f'Copy {i+1}')

---

ScrollingLog.update

 ScrollingLog.update (message:str, index=None)

Add a message to the log, if index is specified, update the message at the index

	Type	Default	Details
message	str		add a message to the log
index	NoneType	None	index of the message to be updated

---

ScrollingLog.draw

 ScrollingLog.draw (image, font=0)

Draw the log on the image

Run some tests

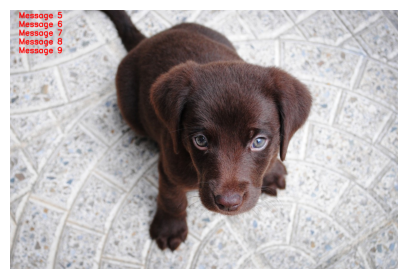

image = np.array(Image.open(TEST_IMAGE))
log = ScrollingLog()
test_eq(log.draw(image), None)   # runs with no log present
for i in range(10):
    log.update(f"Message {i}")

test_eq(log.log[0], "Message 5")
test_eq(log.log[-1], "Message 9")
test_eq(len(log.log), 5)
log.draw(image)

ax = show_image(image)

---

ScrollingLogHandler.set_filter

 ScrollingLogHandler.set_filter (_filter:str)

Set the filter for the log message

# Standard Setting up logging
logging.basicConfig(format='%(asctime)-8s,%(msecs)-3d %(levelname)5s [%(filename)10s:%(lineno)3d] %(message)s',
                        datefmt='%H:%M:%S',
                        level=params.LOGGING_LEVEL)  # Todo add this to params
logger = logging.getLogger(params.LOGGING_NAME)

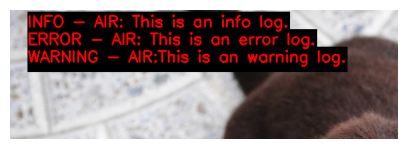

log = ScrollingLog(bg_color=(0,0,0))
handler_log = ScrollingLogHandler(log, logger, _filter='AIR')

# Example usage:
logger.info("AIR: This is an info log.")
logger.warning("This is a warning log.")
logger.error("AIR: This is an error log.")
logger.error("This is an error log.")
logger.warning("AIR:This is an warning log.")
# Display the logs using OpenCV or your desired method
# image = cv2.imread("path_to_image.jpg")
image = np.array(Image.open(TEST_IMAGE))
log.draw(image)
ax = show_image(image[:200,:600], figsize=(5,3))

test_eq(len(log.log), 3)   # there are 3 AIR messages in the log above

INFO   | uav_log         | 03.735 | 817836736.py: 11 | MainThread         | AIR: This is an info log.
WARNIN | uav_log         | 03.737 | 817836736.py: 12 | MainThread         | This is a warning log.
ERROR  | uav_log         | 03.738 | 817836736.py: 13 | MainThread         | AIR: This is an error log.
ERROR  | uav_log         | 03.738 | 817836736.py: 14 | MainThread         | This is an error log.
WARNIN | uav_log         | 03.738 | 817836736.py: 15 | MainThread         | AIR:This is an warning log.

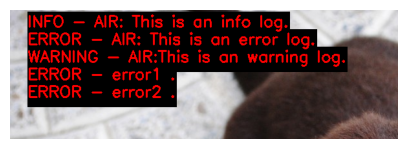

handler_log.set_filter('')
logger.error("error1 .")
logger.error("error2 .")
image = np.array(Image.open(TEST_IMAGE))
log.draw(image)
ax = show_image(image[:200,:600], figsize=(5,3))
test_eq(len(log.log), 5)

ERROR  | uav_log         | 03.887 | 2590345404.py:  2 | MainThread         | error1 .
ERROR  | uav_log         | 03.888 | 2590345404.py:  3 | MainThread         | error2 .

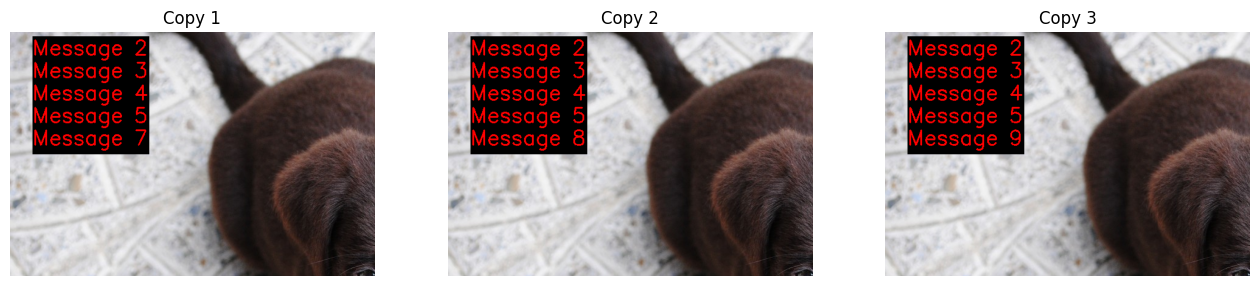

Example of use ScrollingLog with index

# Simulate sequence of images

image = np.array(Image.open(TEST_IMAGE))
def test_log(image, max_lines=3, font_scale=2.0, index=None, bg_color=None):
    log = ScrollingLog(max_lines=max_lines, font_scale=font_scale, bg_color=bg_color)

    # Update log messages
    for i in range(6):
        log.update(f"Message {i}")
    log.update(f"Mes {i+1}")

    _,axs = plt.subplots(1,3,figsize=(16,8))
    for i,ax in enumerate(axs.flatten()):
        img_copy = image.copy()
        log.update(f"Message {i + 7}", index=index)
        log.draw(img_copy)
        # just show the top left corner of the image
        img_copy = img_copy[:img_copy.shape[0]//2, :img_copy.shape[1]//2]
        show_image(img_copy, ax=ax, title=f'Copy {i+1}')

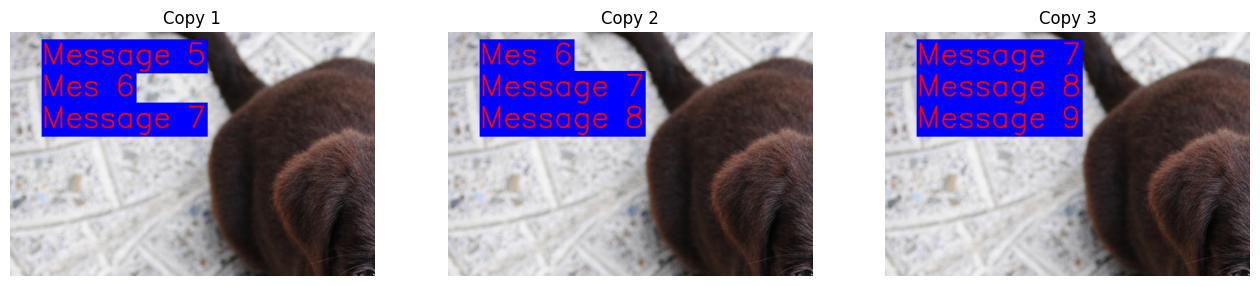

test_log(image, max_lines=3, font_scale=2.0, index=None, bg_color=(0,0,255))

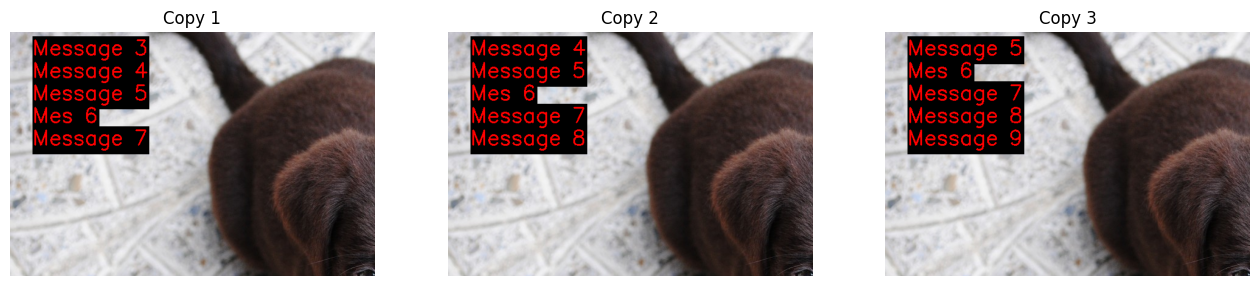

test_log(image, max_lines=5, font_scale=1.4, index=None, bg_color=(0,0,0))

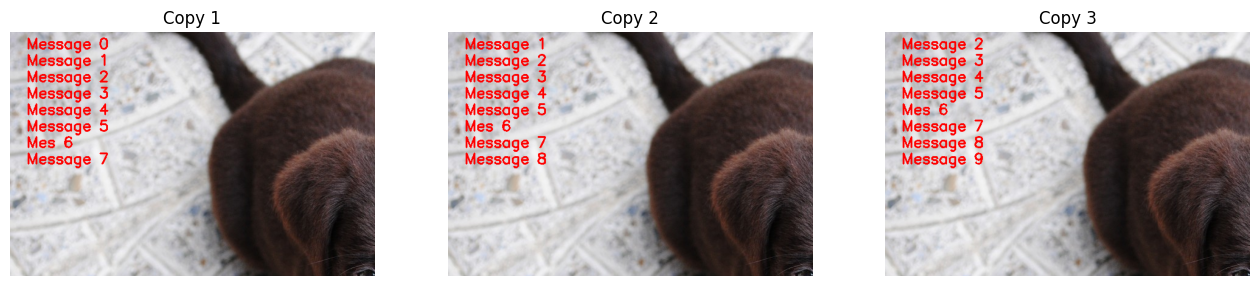

test_log(image, max_lines=8, font_scale=1.0, index=None)

test_log(image, max_lines=5, font_scale=1.4, index=6, bg_color=(0,0,0))

Warning:  0 <= index < len(self.log)
Warning:  0 <= index < len(self.log)
Warning:  0 <= index < len(self.log)

from UAV.utils.display import *

---

VideoWriter.add

 VideoWriter.add (img:numpy.ndarray)

Add an image to the video

	Type	Details
img	np.ndarray	image to be added
Returns	None

---

VideoWriter.close

 VideoWriter.close ()

---

VideoWriter.show

 VideoWriter.show (**kw)

Show the video

import cv2
from UAV.utils.display import VideoWriter, ScrollingLog, ScrollingLogHandler, puttext, show_image
import numpy as np
from PIL import Image
from fastcore.test import *
import logging

# uncomment below to run logging on console
# logging.basicConfig(format=
#                     '%(asctime)-8s,%(msecs)-3d %(levelname)5s [%(filename)10s:%(lineno)3d] %(message)s',
#                     datefmt='%H:%M:%S',
#                     level=logging.INFO)

logger = logging.getLogger(params.LOGGING_NAME) # Todo add this to params
logger.setLevel(params.LOGGING_LEVEL)
log = ScrollingLog(bg_color=(0,0,0))
handler_log = ScrollingLogHandler(log, logger)
logger.info(f"Hello World")

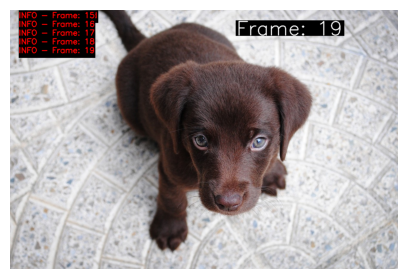

img = np.array(Image.open(TEST_IMAGE))
framecounter = 0
with VideoWriter("images/videowriter_test.mp4", 5.0) as video:
# if True:
    for i in range(20):
        puttext(img, f"Frame: {framecounter}", pos=(700,80))
        logger.info(f"Frame: {framecounter}")
        log.draw(img)
        # cv2.imshow('image', img)
        k = cv2.waitKey(100)
        if k == 27 or k == ord('q') or k == ord('Q'):
            break
        video.add(img)
        framecounter += 1
# cv2.destroyAllWindows()
ax=show_image(img)

video.show(width=500)
test_eq(framecounter, 20)

INFO   | uav_log         | 04.928 | 1743171834.py: 19 | MainThread         | Hello World
INFO   | uav_log         | 04.934 | 1743171834.py: 27 | MainThread         | Frame: 0
INFO   | uav_log         | 04.939 | 1743171834.py: 27 | MainThread         | Frame: 1
INFO   | uav_log         | 04.953 | 1743171834.py: 27 | MainThread         | Frame: 2
INFO   | uav_log         | 04.960 | 1743171834.py: 27 | MainThread         | Frame: 3
INFO   | uav_log         | 04.965 | 1743171834.py: 27 | MainThread         | Frame: 4
INFO   | uav_log         | 04.972 | 1743171834.py: 27 | MainThread         | Frame: 5
INFO   | uav_log         | 04.976 | 1743171834.py: 27 | MainThread         | Frame: 6
INFO   | uav_log         | 04.982 | 1743171834.py: 27 | MainThread         | Frame: 7
INFO   | uav_log         | 04.987 | 1743171834.py: 27 | MainThread         | Frame: 8
INFO   | uav_log         | 04.992 | 1743171834.py: 27 | MainThread         | Frame: 9
INFO   | uav_log         | 04.998 | 1743171834.py: 27 | MainThread         | Frame: 10
INFO   | uav_log         | 05.004 | 1743171834.py: 27 | MainThread         | Frame: 11
INFO   | uav_log         | 05.009 | 1743171834.py: 27 | MainThread         | Frame: 12
INFO   | uav_log         | 05.014 | 1743171834.py: 27 | MainThread         | Frame: 13
INFO   | uav_log         | 05.020 | 1743171834.py: 27 | MainThread         | Frame: 14
INFO   | uav_log         | 05.025 | 1743171834.py: 27 | MainThread         | Frame: 15
INFO   | uav_log         | 05.030 | 1743171834.py: 27 | MainThread         | Frame: 16
INFO   | uav_log         | 05.036 | 1743171834.py: 27 | MainThread         | Frame: 17
INFO   | uav_log         | 05.041 | 1743171834.py: 27 | MainThread         | Frame: 18
INFO   | uav_log         | 05.047 | 1743171834.py: 27 | MainThread         | Frame: 19

Writing video to /home/jn/PycharmProjects/UAV/nbs/api/images/videowriter_test.mp4 at 5.0 fps.
Video: /home/jn/PycharmProjects/UAV/nbs/api/images/videowriter_test.mp4

---

doc_class

 doc_class (cls)

Document all the public methods in a class

# show_doc(Example)

import asyncio
class Example:
    """This is an example class."""
    def __init__(self, param1:float, # param 1
                 param2:str): # param 2
        pass
    def _method_a(self, param1:int, # param 1
                 param2: int):  # param 2
        "This is method A"
        pass
    def method_a(self, param1:int, # the param 1
                 param2: int):  # the param 2
        "This is method A"
        pass
    async def method_b(self, param1:int, # the param 1
                 param2: int):  # the param 2
        "This is method B"
        pass

Example of use doc_class

from UAV.utils.display import doc_class
doc_class(Example)

---

Example.method_a

 Example.method_a (param1:int, param2:int)

This is method A

	Type	Details
param1	int	the param 1
param2	int	the param 2

---

Example.method_b

 Example.method_b (param1:int, param2:int)

This is method B

Note: async function

DocmentTbl(Example)

	Type	Details
param1	float	param 1
param2	str	param 2

inspect.signature(Example.method_b)

<Signature (self, param1: int, param2: int)>

signature_ex(Example.method_b)

<Signature (self, param1: int, param2: int)>

obj = Example.method_b
params = L(signature_ex(obj, eval_str=True).parameters.keys())
params

(#3) ['self','param1','param2']

DocmentTbl(Example.method_b)
DocmentTbl(Example.method_a)
